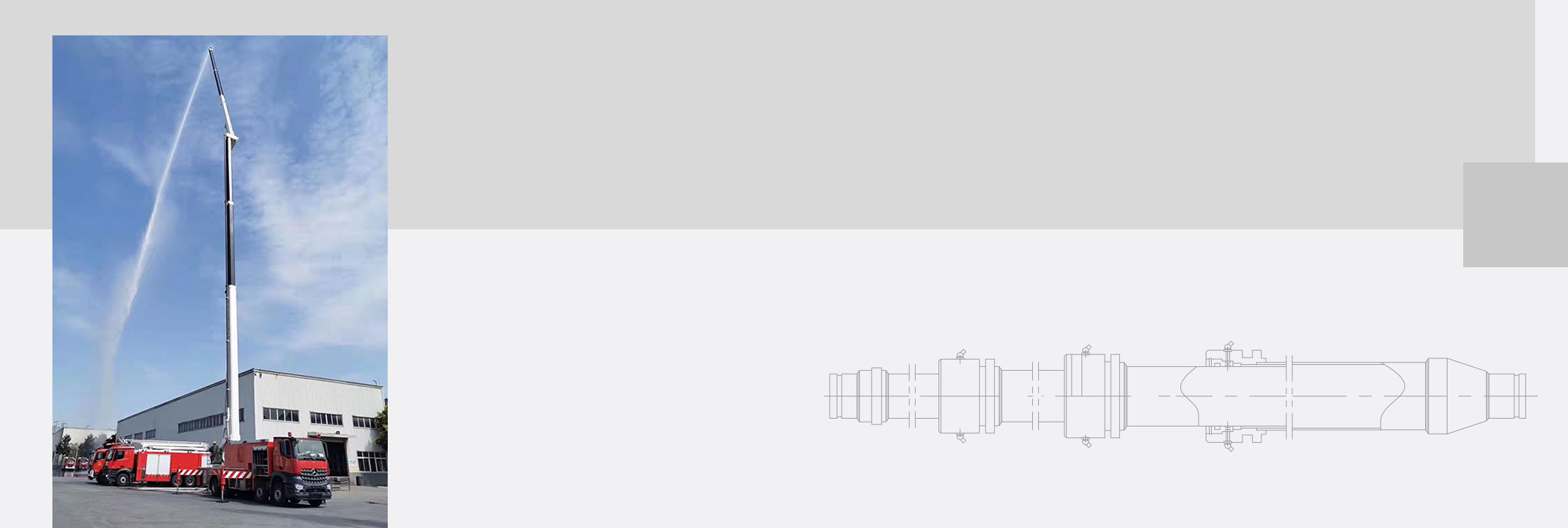

PNEUMATIC TELESCOPIC WATER PIPE
TECHNOLOGICAL SUPERIORITY

The new generation of aluminum alloy telescopic pipe developed by our company has not only made a new breakthrough in the material and structural design, but also utilized high quality hard anodizing technology for the first time in surface coating.

PRODUCT ADVANTAGE
High Pressure
tested pressure @ 60bar (870psi)
Good sealing
no leakage after continuous stretching 200 times under 60bar (870psi) pressure for 10 minutes
Light Weight
weight is almost 1/3 of stainless steel
Low Frictional Resistance
easily extend and retract by hand
Easy Maintenance
Safe to Use
Long Service Lifespan

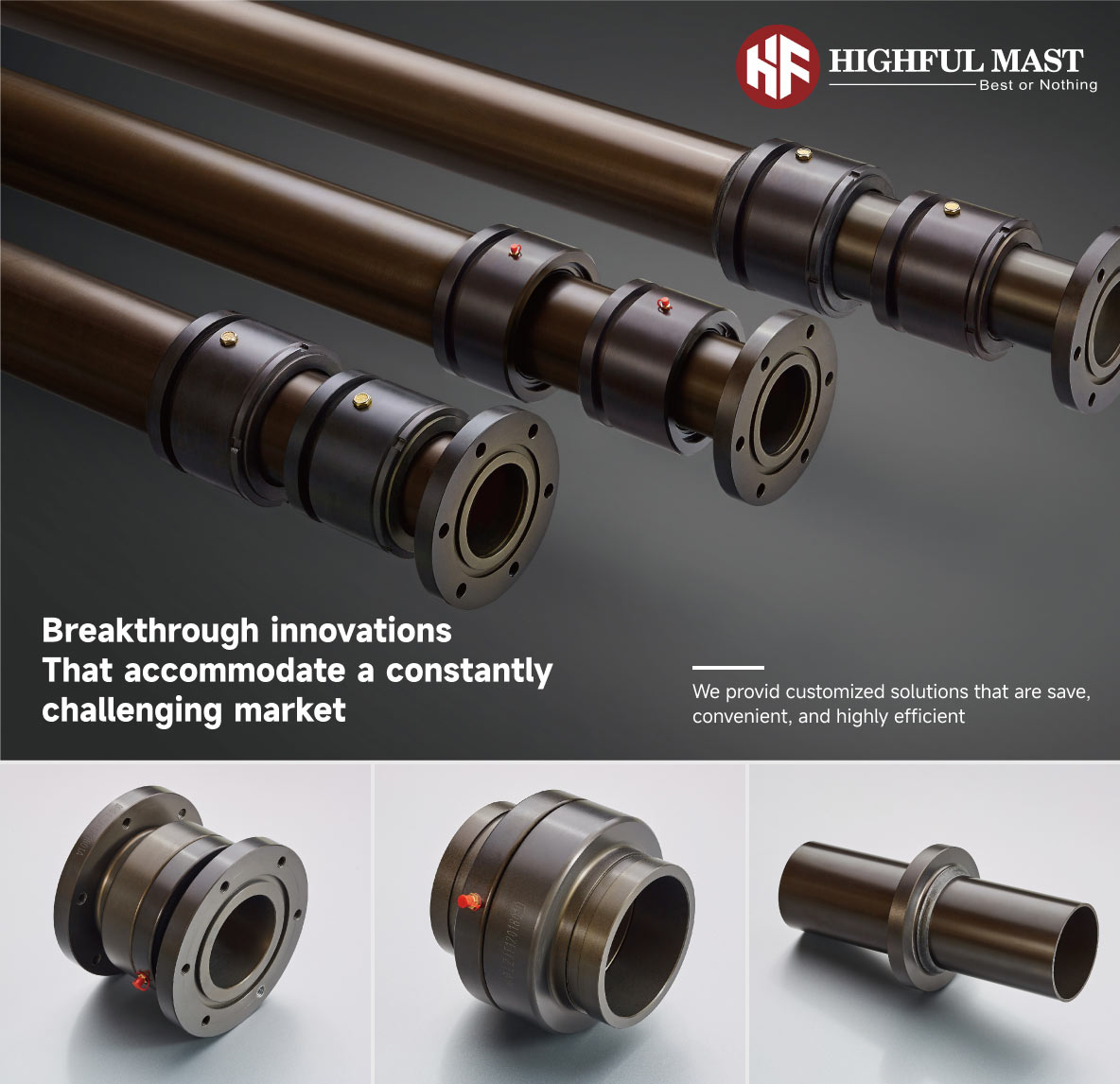

STRUCTURE

Highful Mast has designed and developed a proprietary sealing device which is being used in our products. Test pressure of up to 60bar (870psi) has been applied to each set of products to ensure there is no leakage of water or powder before each product leaves our factory. Unique connection design allows the product to be easily extended and retracted by hand. Additional lubricating oil for powder tube is not needed during use, hence maintaining the product becomes easy and cost effective.

MATERIAL
Name
Aluminum-magnesium alloy
Yield strength
2450 bar
Material thickness
3.5 mm(0.13”in)
Material weight
Density 2.7 g/cm', almost 1 /3 of stainless steel
APPLICATION

Highful Mast is committed to continuous amelioration and innovation and touts proudly a myriad of customized solutions with cutting-edge R & D and technological superiority.

TECHNOLOGY
1
Straightness and Roundness Shaping
2
Inner and Outer Surface Polishing
3
Welding Process- machine automatic welding, stable and reliable quality
4

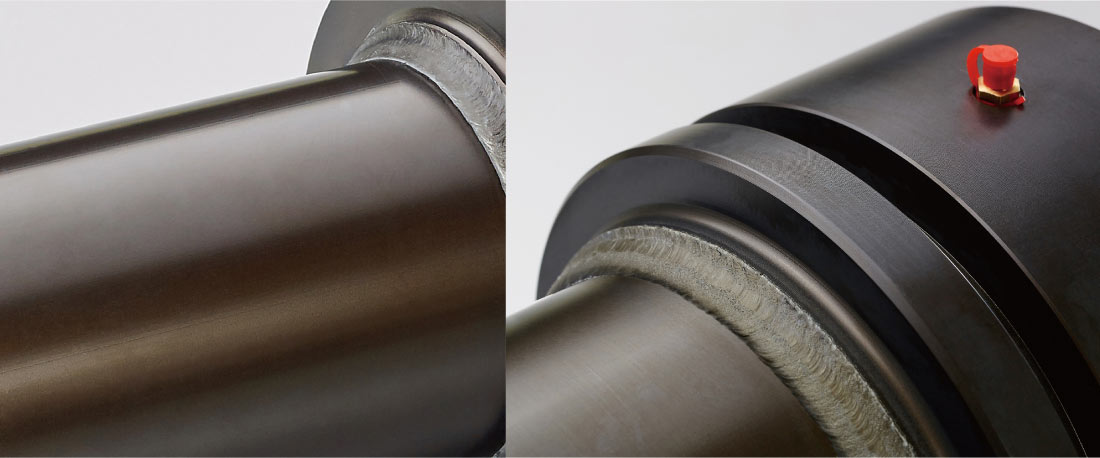

Surface Cladding

Name of cladding: Hard anodization

Cladding adhesion: While oxidation takes place in an electrochemical reaction,the cladding material and base material developed intermolecular bonding. The cladding is achieved on both the internal and external of a pipe product, and this resolves the problem of coating peeling.

Cladding hardness: HRc 40-45. No scratch on the surface even when performed with a key.

5
Lubricity treatment of inner and outer surface of pipe
APPLICATION

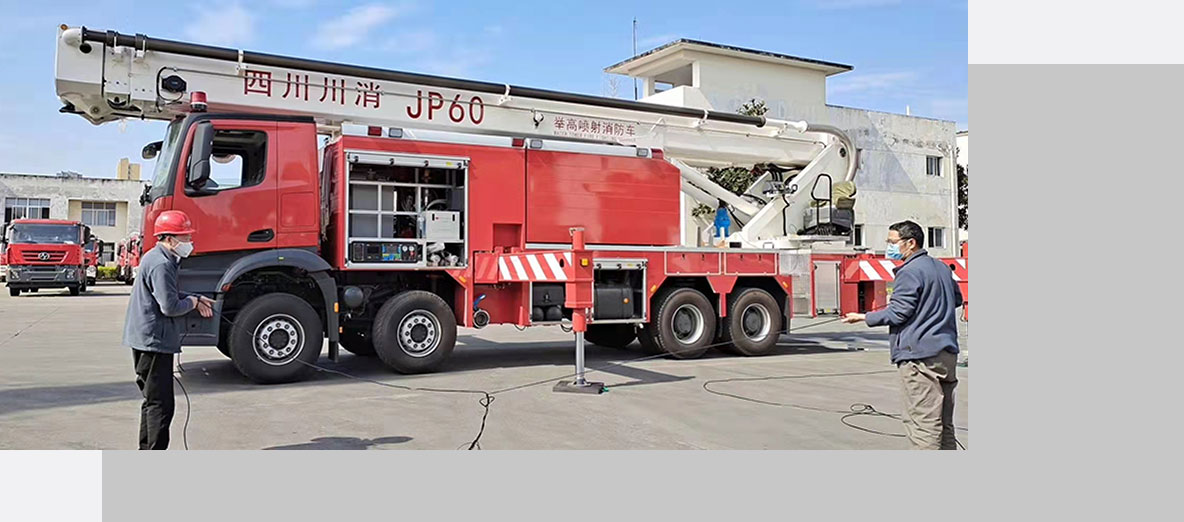

Fire protection category

· Multi-section fire service expansion pipe

· Multi-section fire service expansion dry powder pipe

· Fire rotary water pipe connection

· Fire lift-down lamp

Lighting tower

·Rectractable fold lighting tower

·Independent lighting tower

·High precision tower for antenna

Pneumatic telescopic Mast

·Heavy Pneumatic Telescopic Mast

·Light Pneumatic Telescopic Mast

·Portable Pneumatic Telescopic Mast

·Vehicular Pneumatic Telescopic Mast

·Tripod Pneumatic Telescopic Mast

·Cable-Stayed Self-locking Pneumatic Telescopic Mast

·Bolt Pneumatic Telescopic Mast

·Fixed and Rotary Pneumatic Telescopic Mast

Mobile communication and lighting vehicle
